| P/N |
Density |
PKG(mm) |
Voltage |
Temp.Range |
Configurations |
Status |

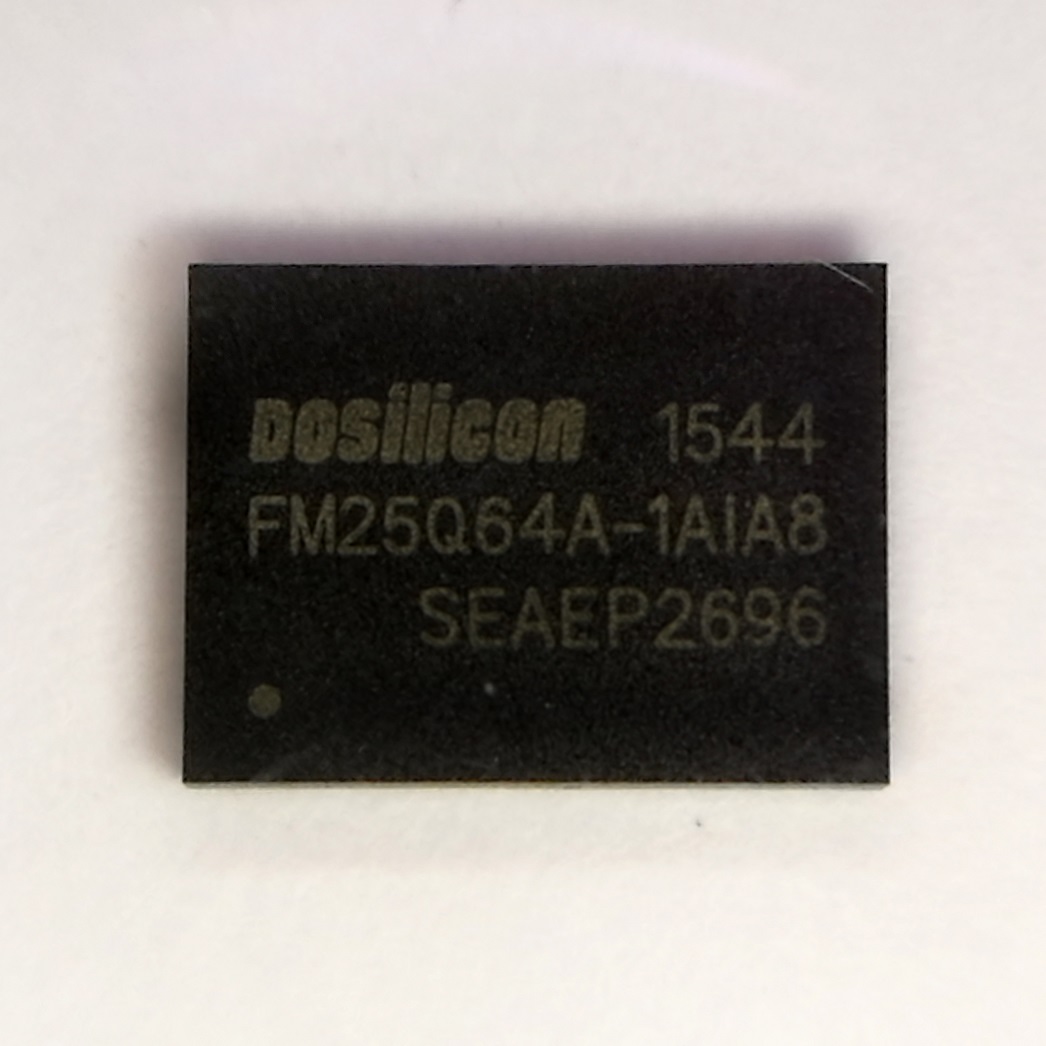

| FM25Q64A |
64Mb |
KGD, USON, SOP, WSON, TFBGA |
3.3V |
-40℃~85℃ |
X1, X2 & X4 |
MP |
FEATURES
■ SPI Flash Memory
－64M-bit / 8M–byte Serial Flash
－256-bytes per programmable page
－4K-bit secured OTP
■ Standard, Dual or Quad SPI and QPI
－Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
－Dual SPI: CLK, /CS, IO0, IO 1, /WP, /Hold
－Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
－QPI: CLK, /CS, IO0, IO1, IO2, IO3
■ High Performance
－133MHz clock operation
－266MHz equivalent Dual SPI
－532MHz equivalent Quad SPI
－65MB/S continuous data transfer rate
－40MB/S random access (32-byte fetch)
－Comparable to X16 Parallel Flash
■ Flexible Architecture
－Uniform Sector Erase (4K-byte)
－Block Erase (32K and 64K-bytes)
－Erase/Program Suspend & Resume
■ Endurance
－100K program/ erase cycles
■ Low Power Consumption
－Single 2.7 to 3.6V supply
－5mA active current
－<3μA Deep Power-down (typ.)
■ wide Temperature Range
－-40℃ to +85℃ operating range
■ Advanced Security Features
－Software and Hardware Write-protect
－Top or Bottom, Sector or Block selection
－Lock-Down and OTP protection
－Discoverable Parameters(SFDP) Register
■ Package Options
－8-pad WSON 6x5-mm
－8-pin SOP 200-mil
－16-pin SOP 300-mil
－8-pin VSOP 208-mil
－8-pad WSON 8x6-mm
－24-Ball TFBGA
■ Package Material
－Dosilicon all product Green package Lead-free & Halogen-free RoHS Compliant
